The File Structure of the CMS

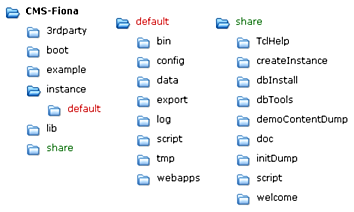

After the installation, Infopark CMS Fiona can be found in a single directory. This directory has the following structure:


The subdirectories have the following contents:

  • 3rdparty contains third party software. In particular, ImageMagick for creating thumbnails, htmlExport for converting files into the HTML format, the libFoundation, Tcl, as well as vdk (components of the Infopark Search Cartridge) are included.
  • boot contains a script with which all existing instances can be started. This script can be included in the runlevels of your Linux distribution in order to have the instances automatically started and stopped together with the operating system.
  • example includes a simple example wizard (as a servlet), a test program for demonstrating the the XMLAPI as well as a simple portlet (for the Portal Manager). These examples are provided as source code so that they can be used as a guide in your own projects.
  • instance contains an individual directory for each instance. Each instance directory contains further directories that have the following contents:
    • bin: Scripts for starting and stopping the components of the instance.
    • config: the configuration files that are read when the instance starts.
    • data: Data of the instance. Each component saves its data in an individual directory. With the Content Manager (cm) and the Template Engine (te), for example, this directory includes the file nps.db, i. e. the storage file of the SQLite database, if no other database has been integrated. The Content Manager and the Template Engine here also store additional data if the storeBlobsInDatabase parameter has been set to NO. The Search Engine Server stores data relevant for queries and collections, among other things, in this directory.
    • export: is the directory in which the files produced by the incremental export of the Template Engine are stored.
    • log: the log files of the instance
    • script: instance-specific scripts
    • tmp: temporary files used by the preview or the upload function, for example.
    • webapps: the web applications of the instance, i. e. the GUI, for example.
  • lib contains libraries, binaries and Java archives required by the CMS.
  • share contains files required by all instances. In particular, these are:
    • TclHelp: the help pages for the Tcl interface.
    • createInstance: scripts with which a new instance can be created.
    • dbInstall: scripts with which a new database for a CMS component can be created.
    • dbTools: scripts for optimizing the database performance of Sybase and DB2 DBMS.
    • demoContentDump: a dump of the demo content supplied with Fiona. You can use this dump to restore a demo content that has been modified. For details, please refer to section Restoring Data.
    • doc: the CMS documentation in HTML and PDF format.
    • initDump: a dump with which an instance is automatically initialized. When this dump is read in, the following elements are created:
      • the fields conversionResults, lastConversion, and linklist
      • the file formats document, generic, image, publication, officDocument, and template
      • the system jobs systemTransferUpdates and systemPublish
      • the files Rootpub and mastertemplate
      • a task for the user root
      • in the user management, the user group admins and the user root
    • newinstance.tgz: an archive that serves as the basis of new instances.
    • script: scripts such as general systemExecute procedures, formatters or custom menu commands, used by all instances.
    • welcome: HTML pages that are displayed after the installation.
